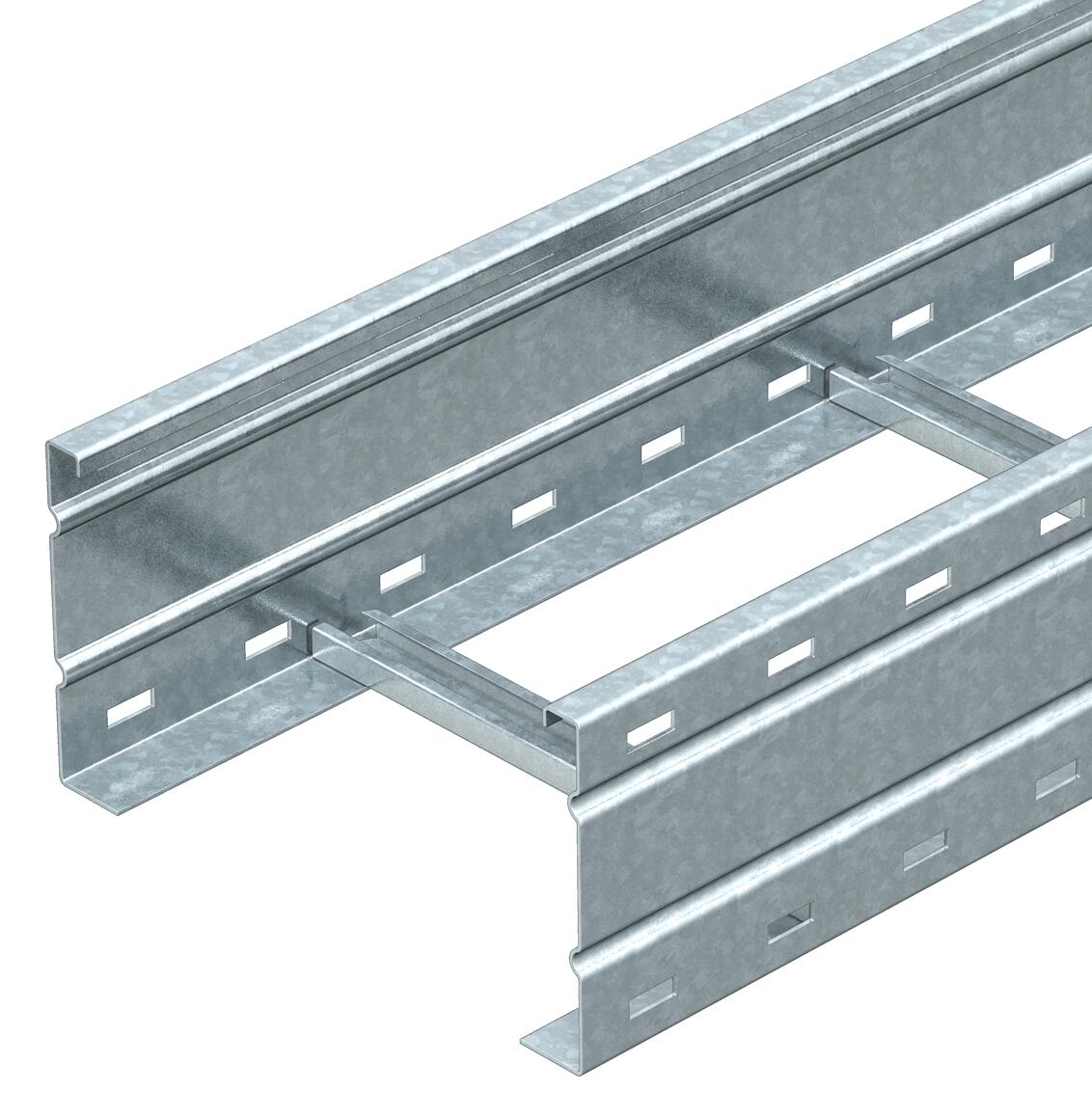

Wide span cable ladder WKLG 160 FS

6227023Wide span cable ladder perforated side rail , 160x200x6000 , WKLG 1620 FS6227031Wide span cable ladder perforated side rail , 160x300x6000 , WKLG 1630 FS6227058Wide span cable ladder perforated side rail , 160x400x6000 , WKLG 1640 FS6227066Wide span cable ladder perforated side rail , 160x500x6000 , WKLG 1650 FS6227074Wide span cable ladder perforated side rail , 160x600x6000 , WKLG 1660 FS

Product details

Product description
Product name
Wide span cable ladder perforated side rail , 160x500x6000 , WKLG 1650 FS
GTIN
4012196169276
Item description, complete
Wide span cable ladder with perforated side rail of side height of 160 mm. Fastening of cables with clamp clip, type 2056. Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Manufacturer
OBO Bettermann
Type
WKLG 1650 FS
Technical data
Colour
zink>zinc
Material
Steel Strip galvanised
Width (mm)
500
Dimension
160x500x6000
Maintain electrical functions
no
Weight
8,285
Height (mm)
160
Length (mm)
6000
Rustproof steel, pickled
no
Wide-span version
yes
Classifications
ETIM group
EG000004
ETIM class
EC000854
Other data
Tender text
Wide span cable ladder WKLG 1650 FS Wide span cable ladder, to bridge support spacings of greater than 3 m, with riveted C profile rungs, open to the top and reinforced, for fastening cables with clamp clips of type 2056, continuously perforated side rail, bevelled side rail for reinforcement and as cable protection Corrosion protection: Strip galvanised according to DIN EN 10346 Side height: 160 mm Width: 500 mm Length: 6000 mm Rail thickness: 2 mm Rung spacing: 300 mm Load capacity: 3 kN/m at Support spacing 3.0 m Deliver and mount Make: OBO Bettermann Type: WKLG 1650 FS Item no.: 6227066 Unit: m
