90° vertical Bend, rising 110 FT

700731990° vertical bend rising , 110x300 , RBV 130 S FT700732790° vertical bend rising , 110x500 , RBV 150 S FT700733490° vertical bend rising , 110x600 , RBV 160 S FT700739890° vertical bend rising , 110x100 , RBV 110 S FT700740090° vertical bend rising , 110x200 , RBV 120 S FT700740490° vertical bend rising , 110x400 , RBV 140 S FT

Product details

Product description
Product name
90° vertical bend rising , 110x100 , RBV 110 S FT
GTIN
4012195850908
Item description, complete

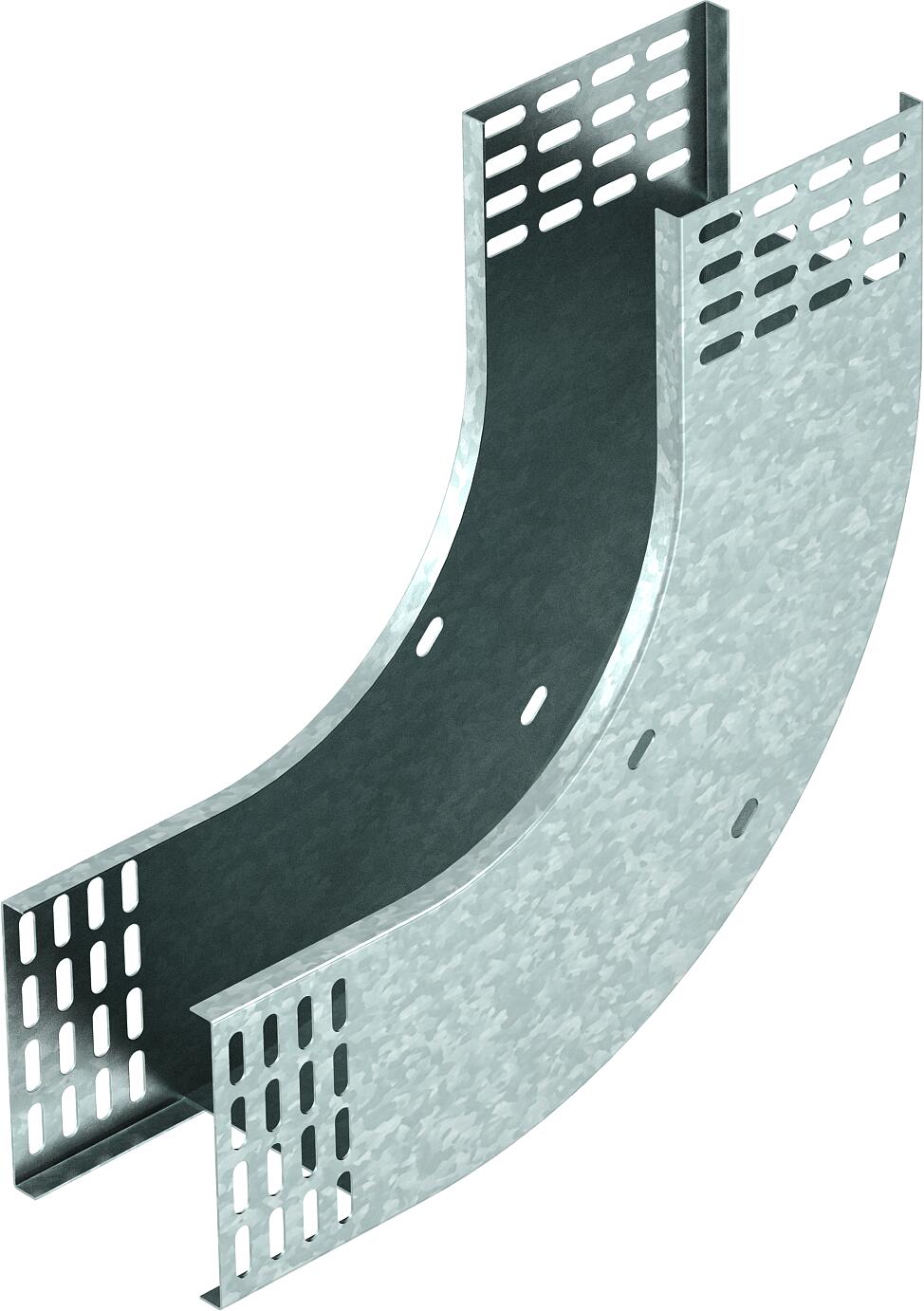

90° rising vertical bend, for all cable tray types of 110 mm side height.
Manufacturer
OBO Bettermann
Type
RBV 110 S FT
Technical data
Colour
zink>zinc
Material
Steel Hot-dip galvanised
Bend (angle)
90°
Type of connector, cable support system
Screwed
Connector version
Without connectors
Plate thickness (mm)
1
Width (mm)
100
Dimension
110x100
Maintain electrical functions
no
Weight
1,2
Height (mm)
110
Rustproof steel, pickled
no
Wide-span version
no
Classifications
ETIM group
EG000004
ETIM class
EC002400
Other data
Tender text
90° vertical bend, rising, for cable tray 110 mm x 100 mm, simple mounting without additional connectors by inserting the cable tray into the rail of the bend. Curved floor plate to maintain bend radii. Corrosion protection: Hot-dip galvanised according to DIN EN ISO 1461 Plate thickness: 1 mm Side height: 110 mm Width: 100 mm Make: OBO Bettermann Type: RBV 110 S FT Item no.: 7007398 Deliver and mount Unit: Piece
