IS 8 suspended support FT

6361021Support with welded head plate , 80x42x200 , IS 8 K 20 FT6361056Support with welded head plate , 80x42x300 , IS 8 K 30 FT6361072Support with welded head plate , 80x42x400 , IS 8 K 40 FT6361099Support with welded head plate , 80x42x500 , IS 8 K 50 FT6361110Support with welded head plate , 80x42x600 , IS 8 K 60 FT6361137Support with welded head plate , 80x42x700 , IS 8 K 70 FT6361153Support with welded head plate , 80x42x800 , IS 8 K 80 FT6361188Support with welded head plate , 80x42x900 , IS 8 K 90 FT6361218Support with welded head plate , 80x42x1000 , IS 8 K 100 FT6361234Support with welded head plate , 80x42x1100 , IS 8 K 110 FT6361250Support with welded head plate , 80x42x1200 , IS 8 K 120 FT6361277Support with welded head plate , 80x42x1300 , IS 8 K 130 FT6361293Support with welded head plate , 80x42x1400 , IS 8 K 140 FT6361315Support with welded head plate , 80x42x1500 , IS 8 K 150 FT6361331Support with welded head plate , 80x42x1600 , IS 8 K 160 FT6361366Support with welded head plate , 80x42x1700 , IS 8 K 170 FT6361382Support with welded head plate , 80x42x1800 , IS 8 K 180 FT6361420Support with welded head plate , 80x42x2000 , IS 8 K 200 FT

Product details

Product description
Product name

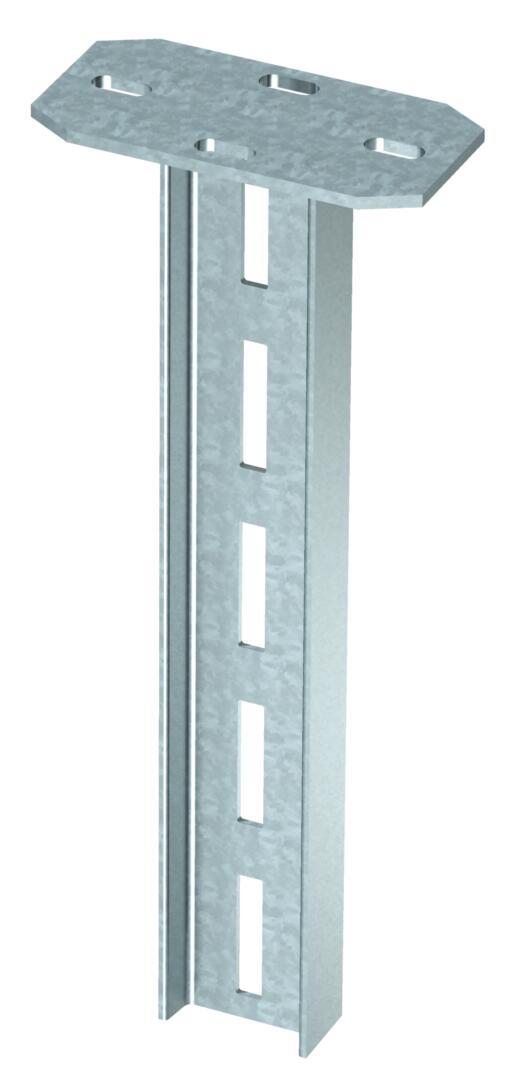

Support with welded head plate , 80x42x600 , IS 8 K 60 FT
GTIN
4012196196579
ELDAS-No.
127 082 049
Item description, complete
I support with welded head plate. For fastening to horizontal concrete ceilings and steel girders.
Manufacturer
OBO Bettermann
Type
IS 8 K 60 FT
Technical data
Colour
zink>zinc
Material
Steel Hot-dip galvanised
Width (mm)
80
Dimension
80x42x600
Maintain electrical functions
no
Weight
4,379
Height (mm)
42
Length (mm)
600
Classifications
ETIM group
EG000004
ETIM class
EC000082
Other data
Tender text
Suspended support, industrial version with special perforation, length 600 mm, made of 80 mm hot-rolled profile (I shape) with welded head plate. Fastened to horizontal concrete ceilings with anchors with construction approval. Infinitely adjustable bracket mounting possible with clamping brackets. Corrosion protection: Hot-dip galvanised according to DIN EN ISO 1461 Dimension: 80 x 42 mm Length: 600 mm Load capacity: Up to 10 kN Make: OBO Bettermann Type: IS 8 K 60 FT Item no.: 6361110 Deliver and mount Unit: Piece
